Copper and Current Designs Inc

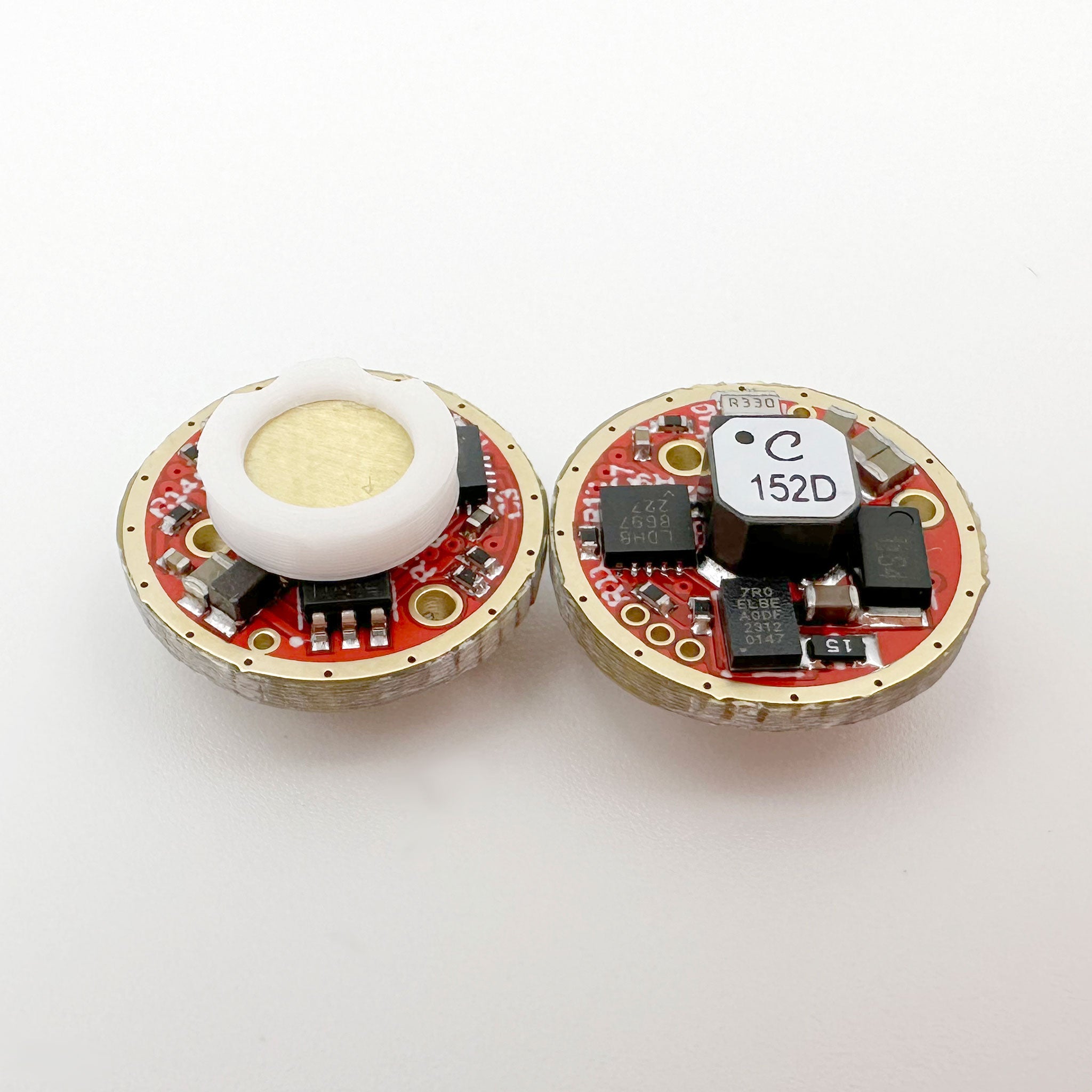

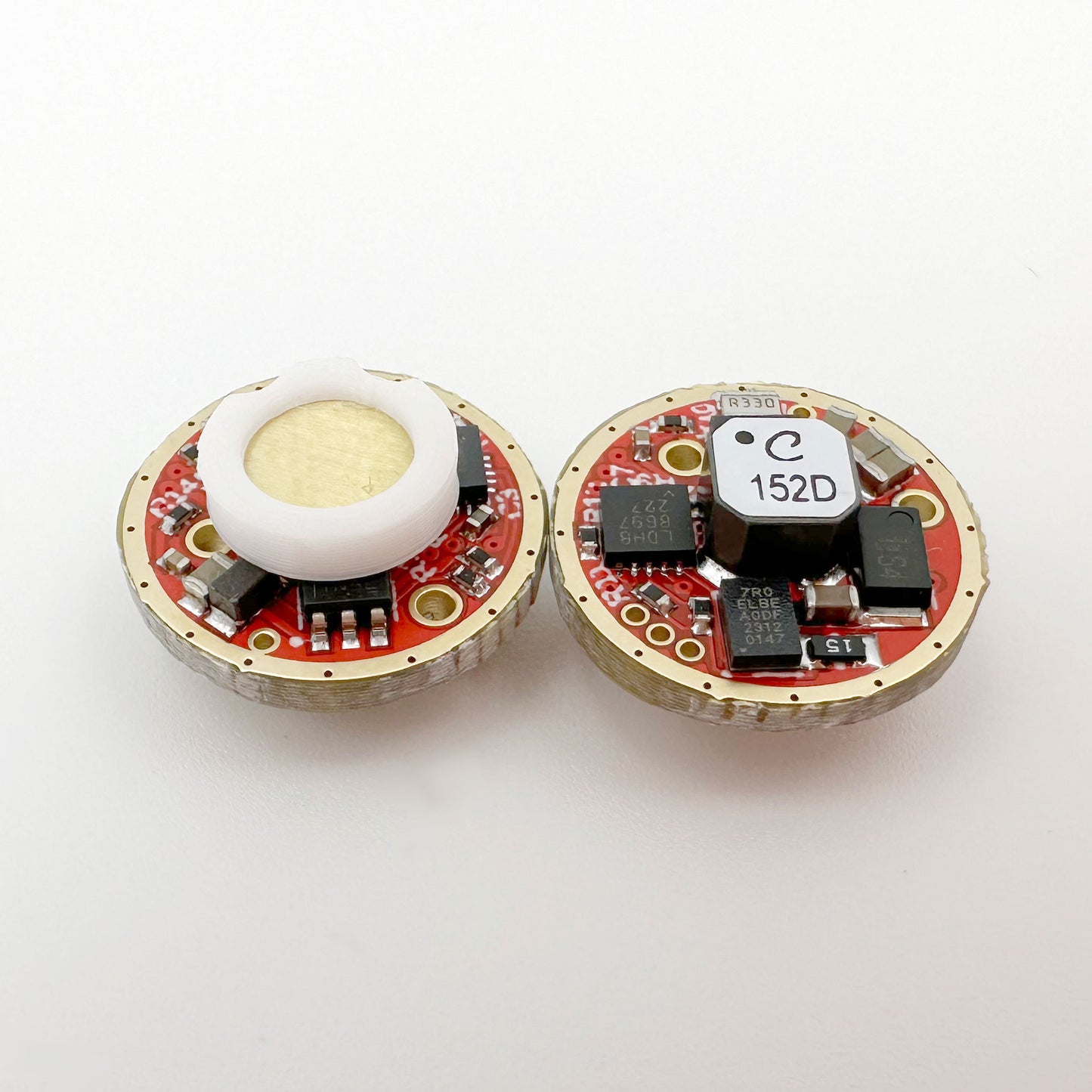

15VP v6 Driver

15VP v6 Driver

Regular price $35.00 USD
Regular price Sale price $35.00 USD
Sale Sold out

Low stock: 7 left

Bring your next LED project to life with the 15VP v6 converter! Efficient and intelligent, the 15VP driver converts 0.9 - 4.2V input into 1.8-12 volts of current-regulated output. With a focus on runtime and efficiency, this is one driver that won’t leave you in the dark.

  • Dependable and Flexible

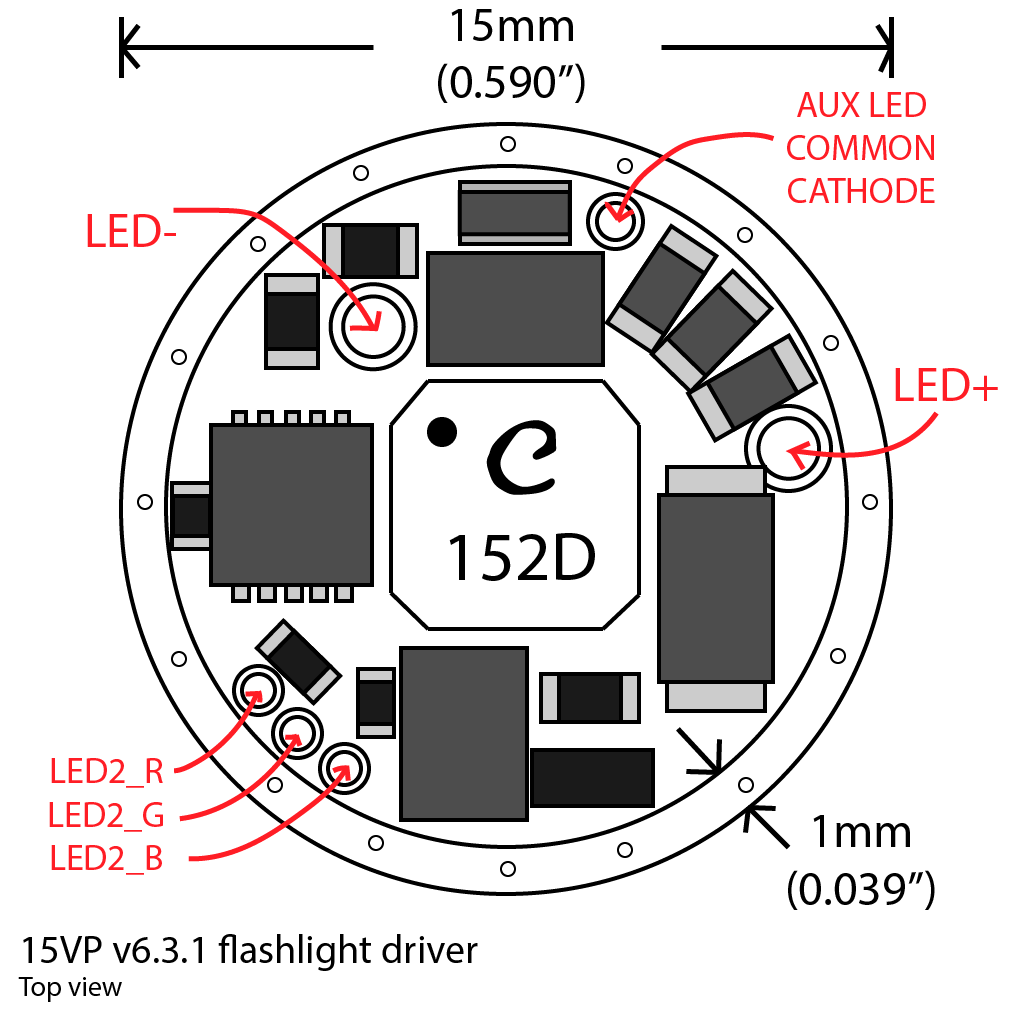

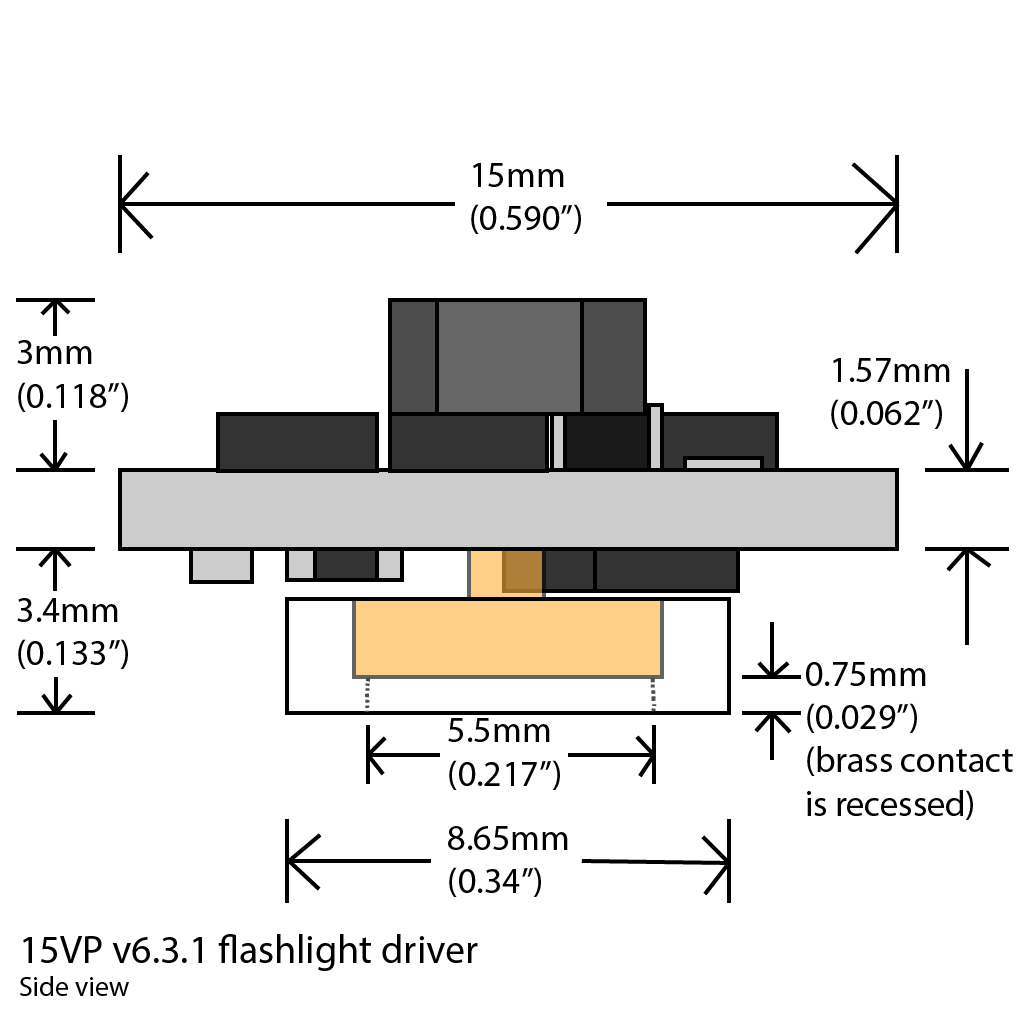

    • 15mm diameter with 1mm ground/thermal ring on both sides
    • Solid brass battery terminal
    • Designed for mechanical switches (no e-switches)
    • Runs on any input between 0.9 - 4.2V (alkaline, NiMH, L91, CR123, 2xAA, 3.7V lithium-ion)
    • Powers any LED with a 1.8-12V forward voltage
  • Technical Ability
    • Current-regulated output across 24 possible brightness levels. No PWM.
    • 21uA to 750mA (1.2V) / 1500mA (3.7V) programmable output current
    • Continuous thermal monitoring with overheat stepdown
    • Continuous battery voltage sensing with low-voltage warning
    • Continuous current sensing with stepdown to increase runtime
    • Heavy copper ground planes to suck heat away from chips and into host

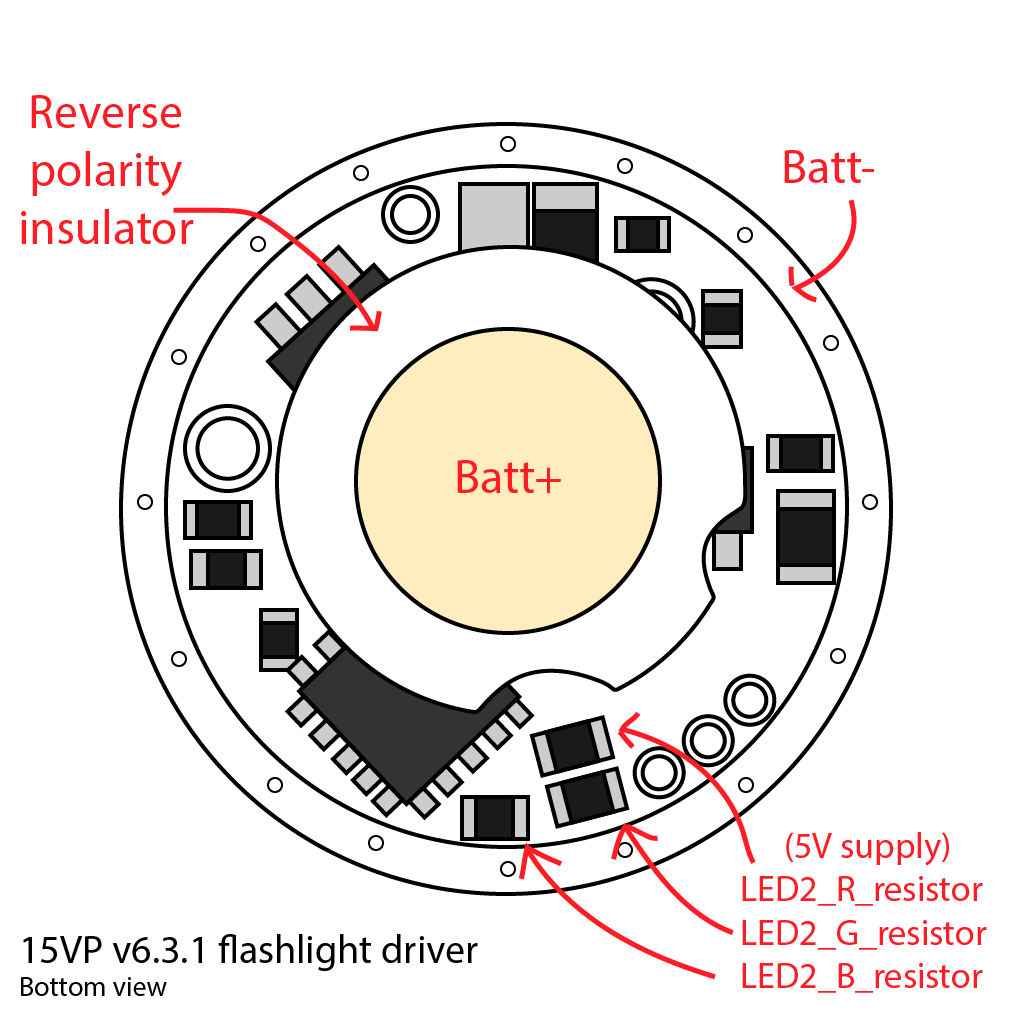

    • No electronic polarity protection. Reverse polarity will cause uncontrolled current flow and may be dangerous. Ensure (+) contact on cell touches central brass battery terminal. Use only button-top cells and do not remove plastic polarity insulator on brass (+) terminal.
  • Intelligent Firmware
    • Two user interfaces (discrete levels + ramping)
    • Change number of outputs (1-4) and brightness of each
    • Hardware and firmware support for secondary auxiliary RGB LED's - add a secondary LED PCB here
    • Choice of mode memory: none, classic or hybrid
    • Change all other settings (battery monitoring, stepdown) with only a couple clicks of the switch
    • See Firmware Documentation page for full details
  • No Expense Spared
    • Why is this board so expensive? Every component was selected purely based on performance, durability and efficiency with no eye towards price. These are the best chips available and they aren’t cheap.
    • At this price, I earn $5 /hr painstakingly building these
  • Made in Canada
    • Each circuit board assembled by hand in Canada

Interested in the storied history behind the 15VP driver?

Chasing Moby Dick
