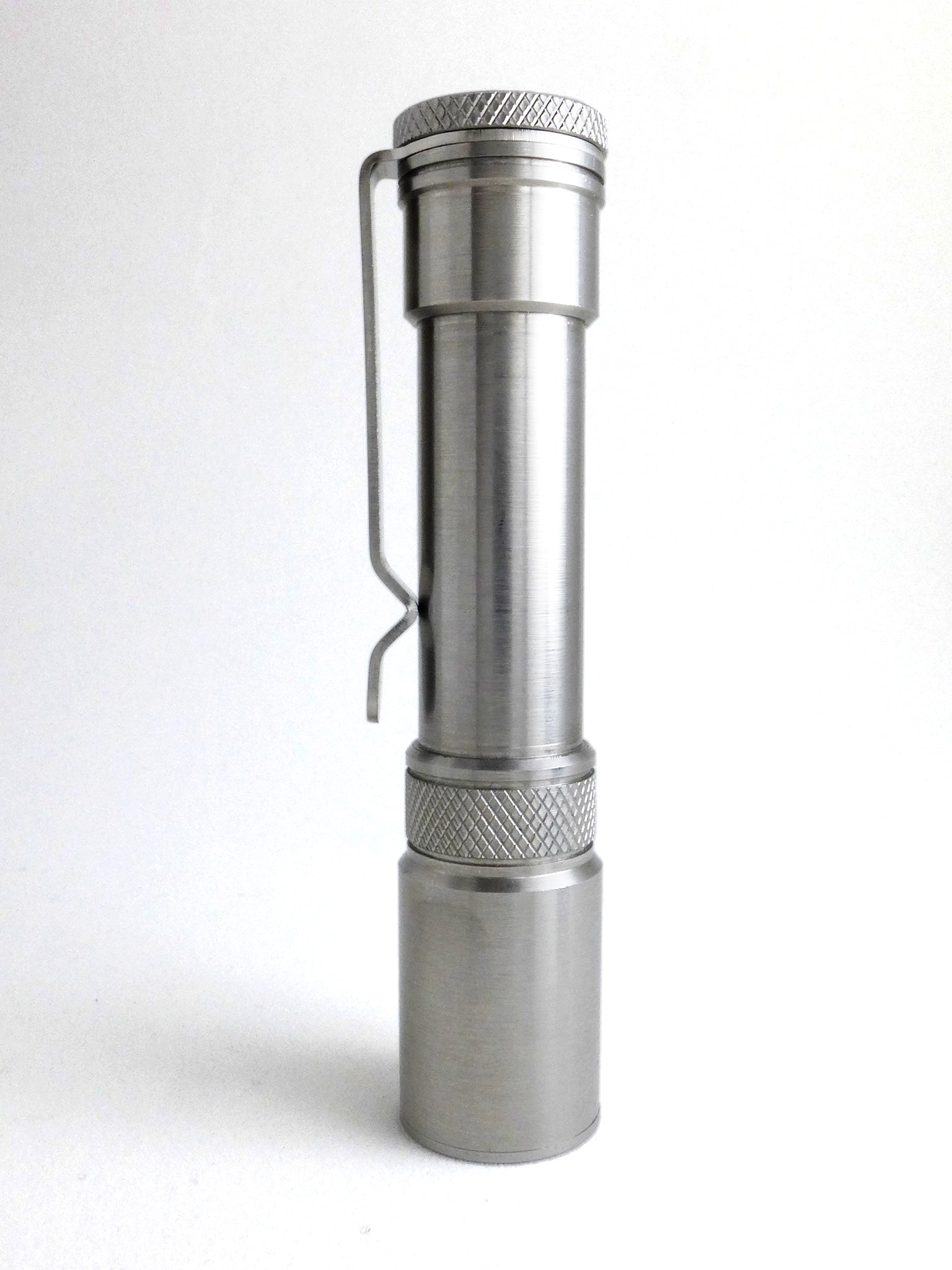

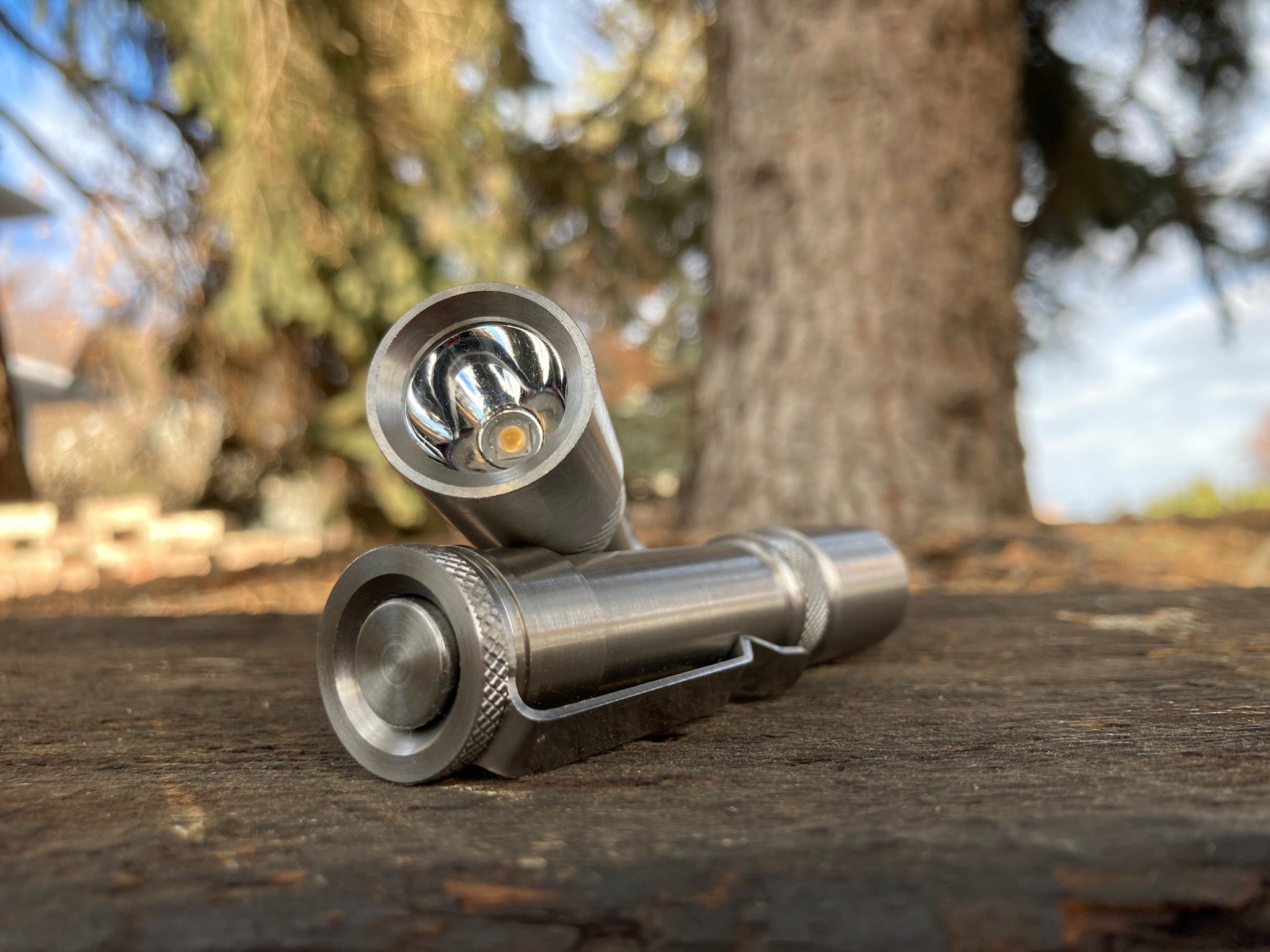

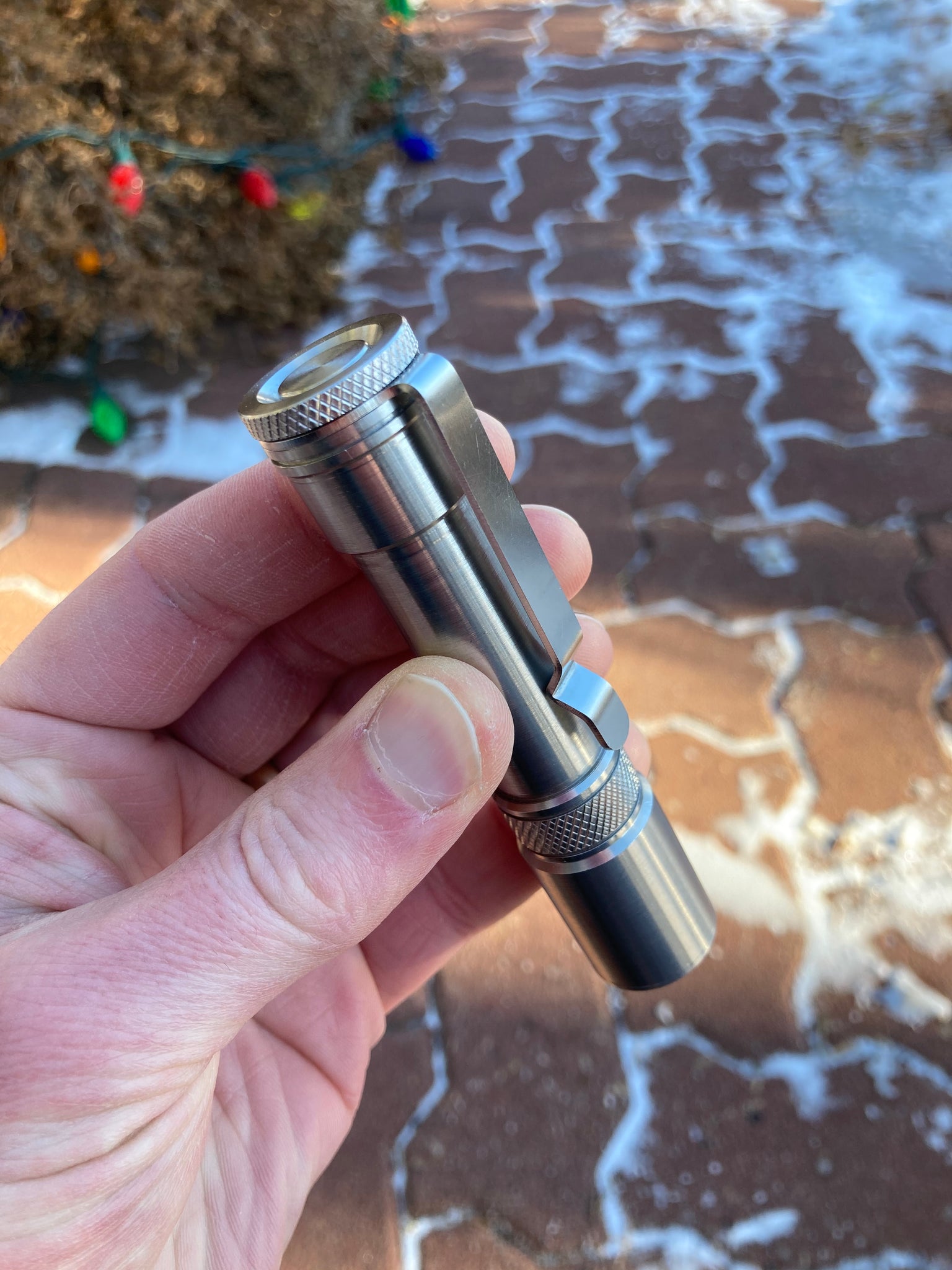

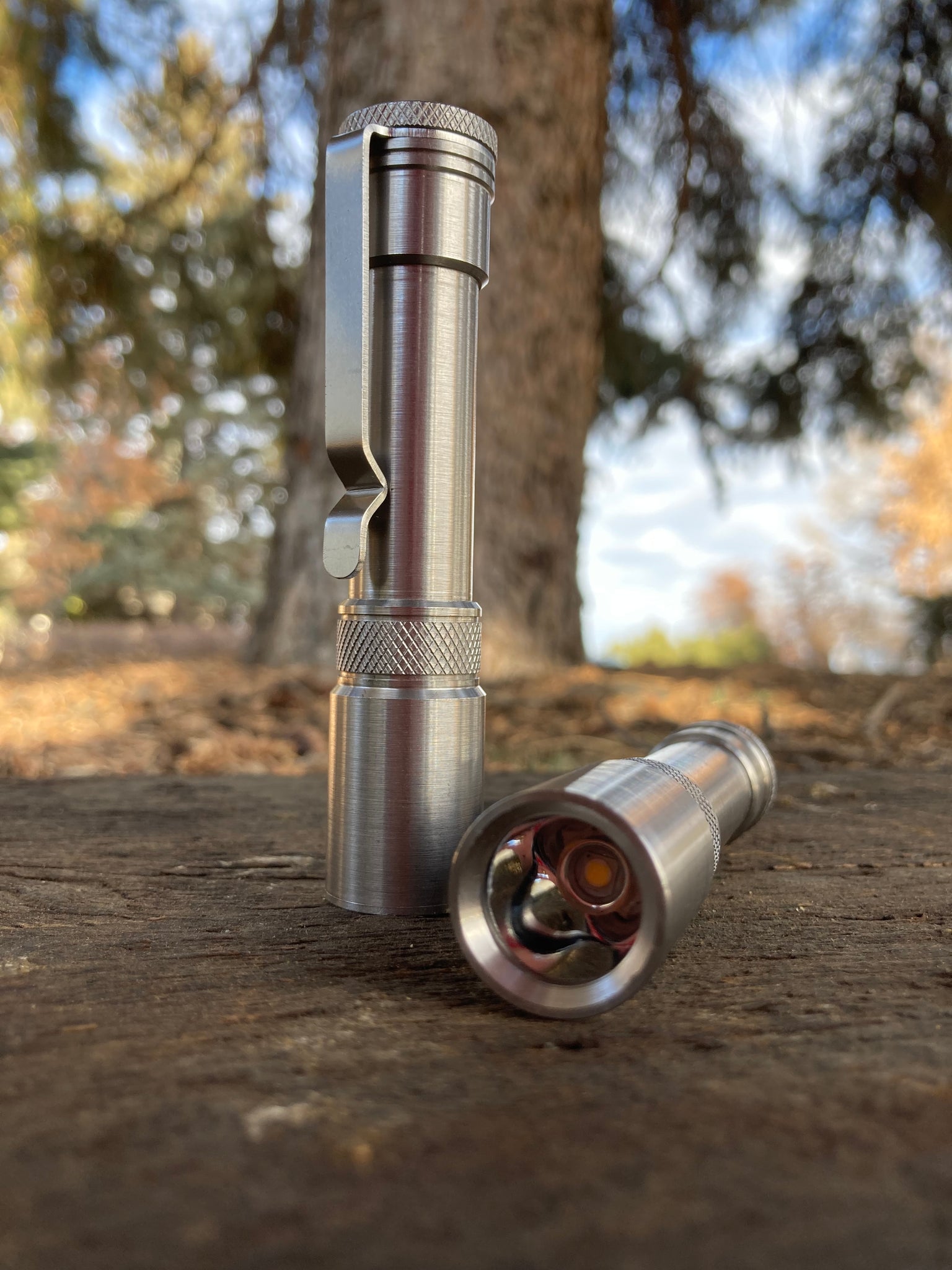

Ten years in the making, the Hinton is a AA/14500 pocket flashlight built to exacting specifications. Born from a desire for a light that didn't exist, this flashlight is the culmination of all my learnings in electronics, industrial design, and fabrication.
15VP v6 user-programmable AA/14500 driver
Two user interfaces: ramping and discrete levels
Constant-current regulation through all 24 possible brightness levels (no PWM)
Low-voltage protection on both AA/14500
Thermal stepdown to prevent overheating
0.01 to ~200(1.2V)/400(3.7V) lumen output using Cree XP-L2 HD emitter
Reverse-clicky switch with metal switch boot and tailstand capability

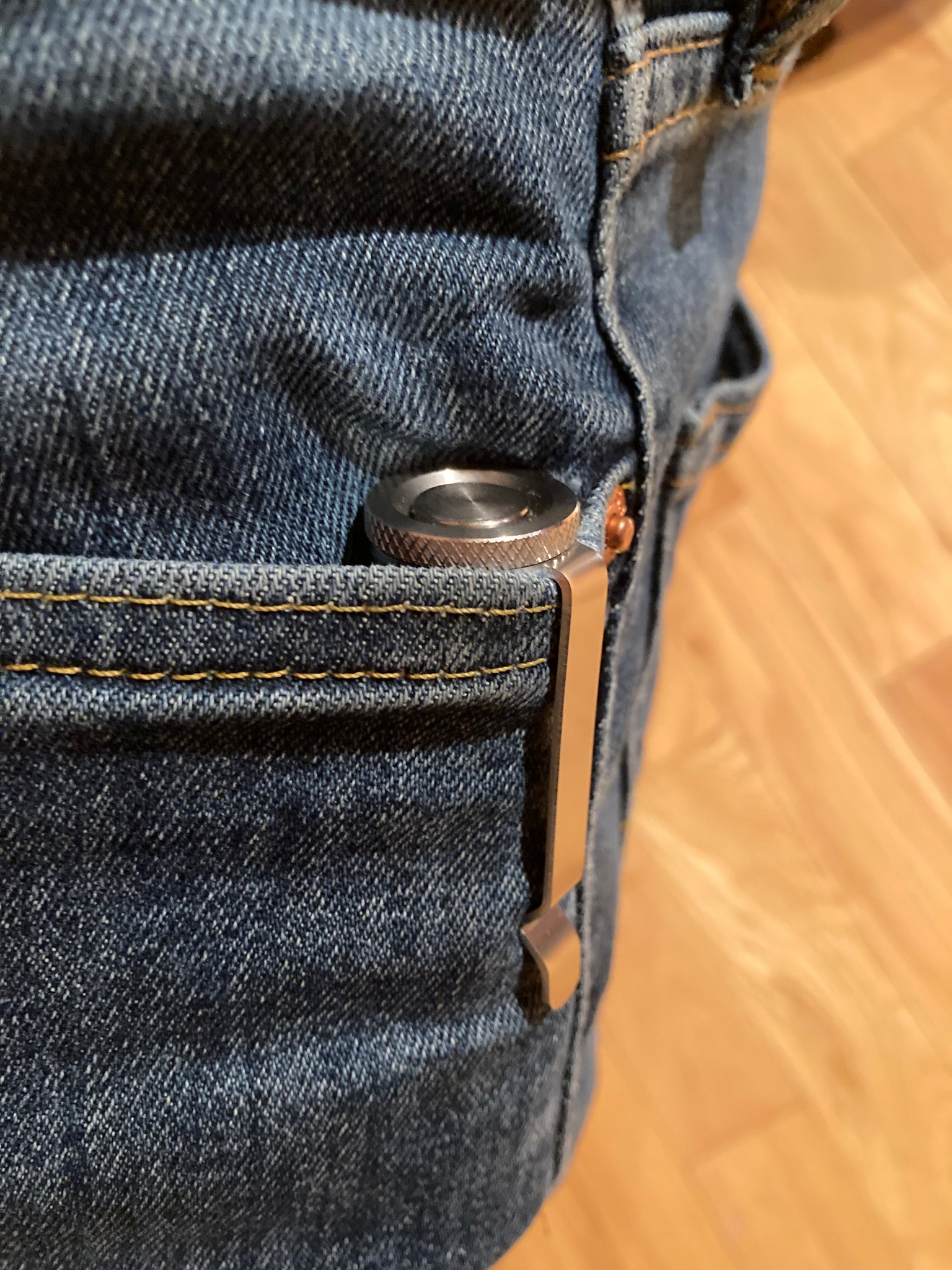

Deep-carry stainless spring-steel pocket clip
AR-coated UCL v3 Borofloat glass lens
Solid brass driver pill with solid copper Sinkpad MCPCB
3.8" (96mm) long by 0.8" (20mm) diameter
Handmade in Canada
Should the options shown here not work for you, send me an email and I'm happy to build a light for you in exactly the configuration you desire.
